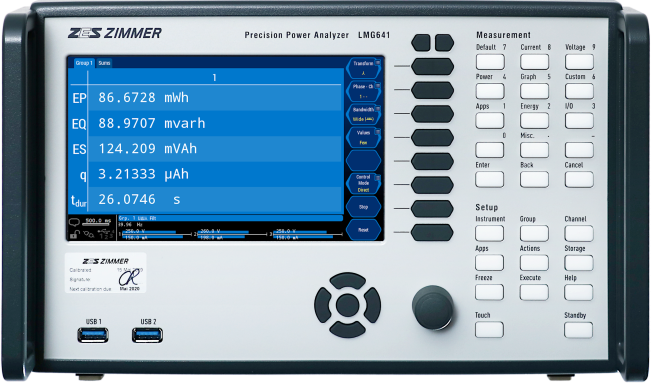

One-shot Results for Narrowband, Full Spectrum and Harmonics
Features:
Flexibility
The right channel combination for every application

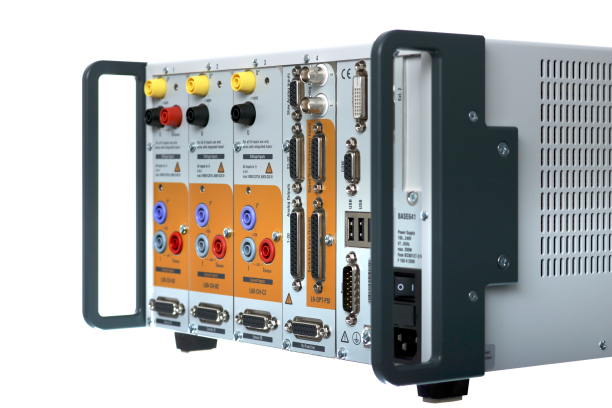

Configuration with 1 to 4 power measuring channels (alternatively 3 measuring channels and Process-Signal-Interface) Retrofitting of channels available!
Synchronization
Synchronize simultaneously on up to four different frequencies
DualPath
Simultaneous measurement in two bandwidths thanks DualPath - no compromises, no doubt
In Power meters of traditional construction, a signal first passes through an analog processing, the output values are digitized by an A / D converter and then processed. The resulting signal may then either measured over the full range, or treated with anti-aliasing filters, e.g., to serve as the basis for an FFT or other digital filtering. By restriction to an A / D converter, one has to taken certain disadvantages into account. If measured with a filter, in order to avoid aliasing in the FFT, the broadband values are lost. When the filter is disengaged, strictly speaking, the FFT has to be omitted. If the FFT is performed without anti-aliasing filter for measurement over the full bandwidth, the quality of the calculated values is questionable. For example, an aliasing error of 50% would of course be easily detected, a deviation of 0.5% could remain unnoticed. Finally, it can be switched back and forth between measurements with and without filters. The validity of these results is, however, also doubtful, as would be expected of a temporal invariability of the signal, which is hardly ever the case in reality. Moreover, this method is extremely time consuming.
Ultimately, the shown measurement methods are unsatisfactory compromises. For this reason, ZES ZIMMER has radically redesigned the signal conditioning and developed the DualPath architecture. The analog side corresponds to the conventional instruments, the subsequent digital processing, however, was revolutionized. The power analyzers of the LMG600 Series are the first power meters featuring two A / D converters in each of the two independent signal paths for current and voltage channel. A filter for the contact measurement of the broadband signal, and another for the narrowband signal at the output of anti-aliasing filter. By means of parallel processing of the digitized samples, the user has access to both measurements of the same signal without the risk of aliasing. This unique process eliminates all the disadvantages of previous approaches and guarantees accurate results in the shortest time.
A/B/C/S-Channels
For every application the right channel type:
Plug ’n’ Measure
Convenient commissioning with zero risk of misconfiguration
Although the LMG600 offers an unsurpassed dynamics in both the voltage and current range, there are always applications with exceptional demands on the measurement areas. Whether this is to currents of several hundred amperes and voltages of several kilovolts, ZES ZIMMER has a suitable solution at hand. We provide a wide range of current and voltage sensors that is perfectly matched to the precision power meter LMG600 and expands the measurement range of the instrument to the necessary degree. The sensors of our "Plug'n Measure" series are equipped with a bus system, which allows automatic configuration of LMG600. All important parameters, such as the exact scaling factor, the term compensation quantity, the last calibration date and the sensor type, are automatically read by the power meter and included in the measurements. In addition, the sensors' operating power is supplied by LMG600, so that a separate power supply is not necessary. With "Plug'n Measure" mal-adjustment by the user is avoided and the best possible measurement results are guaranteed. From the user's point of view, no difference between direct and sensor-based measurement is perceptible. Of course, other conventional sensors can also be used with the LMG600.

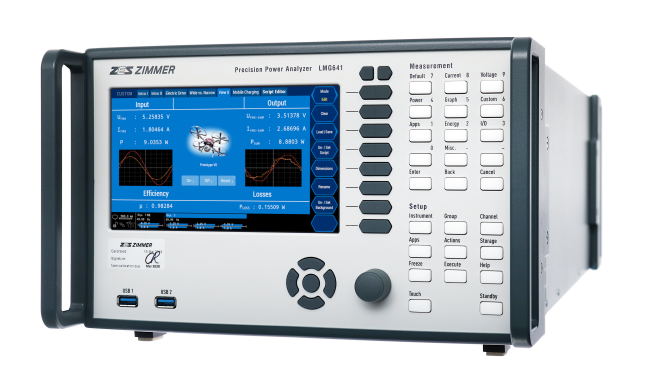

Custom Menu
The GUI you always wanted…
… in less than 20 minutes
Display only what you really need in a way that helps you most to achieve the task at hand - as easy as 1-2-3:
Interfaces
Powerful interfaces
Excellent connectivity with USB3.0, Gigabit-Ethernet, RS-232 and DVI/VGA
Star-Delta
Conversion from phase to phase in the phase voltages and determination of the active power
For a 3-phase 3-wire system only the phase voltages U12, U23, U31 and the phase currents I1, I2, I3 are amenable to measurement. With the help of star-delta conversionline, voltages can be determined in the inaccessible phase voltages, converted into the associated active powers. In analogy, the phase currents can be converted into the "chained" currents. From the values thus calculated, all other variables, e.g. harmonics, are derived. Distortions and asymmetries of power and consumers are considered correctly. The use of an external artificial neutral point is thus superfluous, but such can be connected, if required, at any time, in case the associated disadvantages (e.g. increased power dissipation) are accepted.
Calibration
12 months guaranteed calibration for low maintenance cost and optimum equipment availability
Free calibration protocol included at first delivery
Warranty
All ZES ZIMMER power meters of the LMG series, the current sensors of PCT series and the voltage sensors of the HST series are carefully tested, adjusted and calibrated prior to shipment and are subject to strict quality controls. ZES ZIMMER guarantees for a period of 24 months from first delivery that these products are free from defects in material or workmanship.
ZES Warranty Terms
Harmonics
Harmonics and inter-harmonics up to the 400th order, in accordance with standards as per EN61000-4-7
Process signals
Process Signal Interface (PSI)
(optional) speed / torque sensor inputs via the menu on all signal types freely configurable (analog, frequency and RS422, TTL or HTL)
Flexible Filter
Signal filter freely adjustable according to frequency, type and characteristics
Remote control
LMG Remote
The LMG Remote PC software allows to easily control the LMG641 remotely from a Windows PC. Since this software mimicks the measuring device itself down to the last detail, the LMG641 can be operated as usual, even from the PC - no rethinking required, no familiarization time.
Continuity
Complete data collection
In the wake of stricter monitoring of consumption and efficiency of electrical appliances, new standards and procedures (eg SPECpower_ssj2008, IEC 62301) will continuously be created to enable an objective comparison of the different manufacturers. Whether it is workstations, servers or appliances, is irrelevant to the principle: The long-term evaluation of the power consumption has always to take all relevant operating conditions into account. The differences between minimum load - e.g., Idle mode, - and full load can thereby be of considerable magnitude, which requires a very sophisticated means of measurement (see also Application Note No. 102, "Measurement of standby power and energy efficiency."). The measurements must be carried out over several hours and may not show any gaps. By selecting a sufficiently large measurement range, range changes and the inevitably resulting data losses can be avoided. The fundamental precision LMG600 also ensures an accurate measurement at the lower limit of a range.
Exact signal transit time
Exact measurements thanks to minimal runtime differences
The fast switching semiconductors used to improve the efficiency of modern frequency converters cause extremely steep voltage edges. The resulting capacitive currents affect the bearings and the motor insulation - this can lead to premature failure. Motor filter (e.g. du / dt filter) attenuate the voltage gradient, but generate themselves power dissipation due to the settling of the filters' frequencies (typically > 100 kHz). The high bandwidth and the small time difference between the current and voltage of the LMG600 enable highly accurate power loss measurements on the filters at these frequencies, and longitudinal measurements with small cos φ. This also applies to power measurements at high bandwidths up to 10 MHz. This requires that the current and voltage channels must be designed for minimum delay differences; in the LMG600 it is less than 3 ns; this corresponds to 50 Hz at an angle error <1 μrad. The instrument is therefore ideally suited for the power loss measurement at small phase angles for transformers, inductors, capacitors and ultrasonic sensors. No options or adjustments are necessary, as the devices will fully meet this measurement task already in the default setting when shipped. For measurements on circuits of highest performance, typically current and voltage transducers are employed. The phase angle of the converter can be corrected via the runtime menu and thus the measurement accuracy can be improved.
Technical Specifications
A channel
Accuracy
f/1 MHz*1.0 +
f/1 MHz*2.0
f/1 MHz*2.0 +
f/1 MHz*1.8
f/100 kHz*0.8 +
f/100 kHz*0.84)
f/100 kHz*1.0 +
f/100 kHz*1.14)
f/1 MHz*1.4 +
f/100 kHz*1.04)
B channel
f/1 00 kHz*0.8 +
f/1 00 kHz*1.2
Current I* 5 mA...5 A
Current ISENSOR
f/1 00 kHz*2.0 +
f/1 00 kHz*2.03)
Power U*/ I* 5 mA...5 A
Power U*/ ISENSOR
f/1 00 kHz*1.28 +
f/1 00 kHz*2.24 +
f/1 00 kHz*1.64)
C channel
f/1 kHz*1.0 +
f/1 kHz*1.0
f/1 kHz*1.03)
f/1 kHz*1.6 +
f/1 kHz*1.04)
1. Sinusoidal voltages and currents
2. Ambient temperature (23±3) °C
3. Warm-up time 1 h
4. The maximum peak value for power is the product of the maximum peak value for voltage and the maximum peak value for current.
5. 0 ≤ |λ| ≤ 1 (power factor)
6. Current and voltage 10 % ... 110 % of nominal value
7. Adjustment carried out at 23 °C
8. Calibration interval 12 months
1) 2) 3) 4) only valid in range 10 ... 32 A:
1) additional uncertainty ± 80μA/A2 * Itrms2 2) additional uncertainty ± 80μA/A2 * Itrms2 * Utrms 3) additional uncertainty ± 80μA/A2 * Itrms2 4) additional uncertainty ± 80μA/A2 * Itrms2 * Utrms
e) Accuracy specification after non-persistent zero adjustment, temperature change after zero adjustment max. ±1°C
2 fast analog inputs (150 kS/s, 16 bit, BNC)
8 analog inputs (100 S/s, 16 bit, D-Sub:DE-09)
32 analog outputs (output per cycle, 14 bit, D-Sub: DA-15 & DB-25)
8 switching outputs (6 switches with 2 connections each and 2 switching outputs with common negative, D-Sub: DB-25) 8 switching inputs (150 kS / s, in two groups 4 inputs each with common ground, D-Sub: DB-25) Speed-/torque-/frequency inputs (150 kS/s, D-Sub: DA-15)
The complete technical data can be found in the manual, which is stored on your LMG600 in the valid version.
