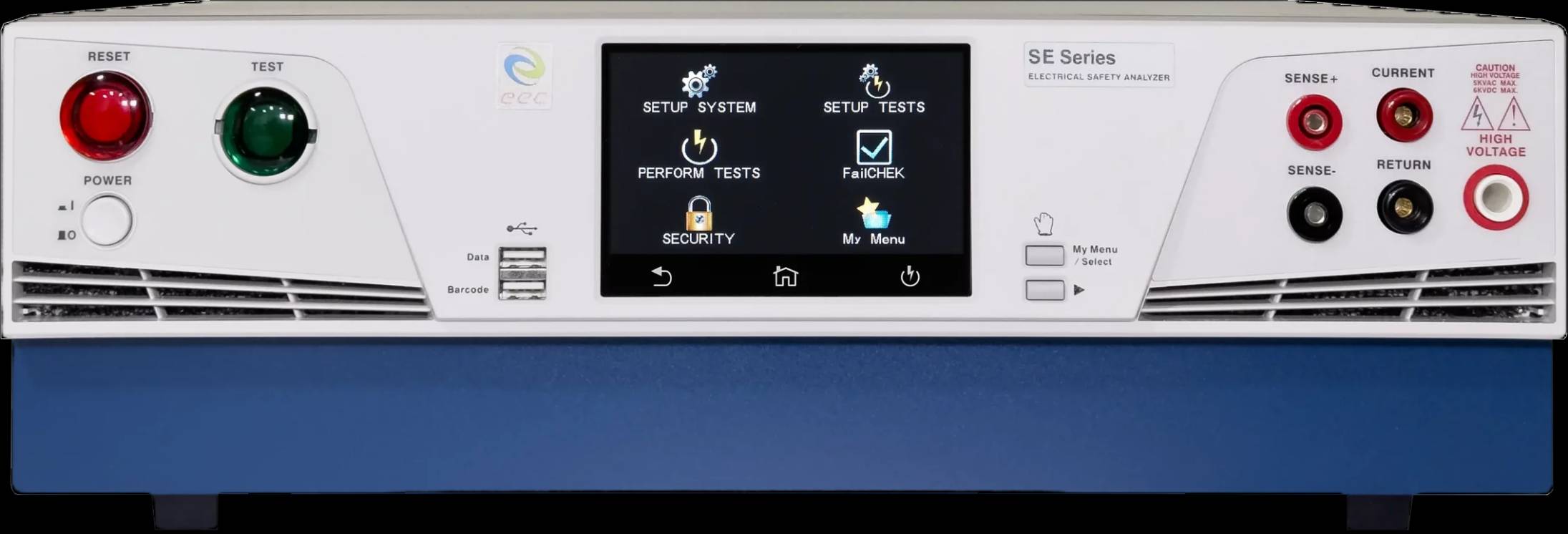

The SE 7441 Compact 4-in-1 Safety Analyzer combines cutting-edge safety features into one versatile device. With advanced ARC detection, precise ground bond measurements, and true negative voltage capabilities. Streamline your testing with one-click scanning, which simultaneously checks multiple points across up to 16 channels, boosting efficiency for multi-functional products. Ideal for today’s industrial environments, the SE 7441 features a user-friendly 4.3-inch touch panel and barcode data scanning, simplifying operations and maximizing productivity.
Continuous
Vericheck
Ramp High
Charge Low
Fast Discharge
ARC Detection
Smart GFI
External Scanner
Peak quality assurance for products with ARC detection capability eliminates poor gap spacing that may be damaged during shipping and cause dielectric breakdowns.
Intuitive and user-friendly touch panel operation combined with highly flexible and programmable testing parameters to enhance testing efficiency.
EEC exclusive patent on fast discharge function helps the DUT rapidly discharge excess electricity within 50ms to maximize operator safety, especially when testing large capacitance DUTs.
Built-in barcode interface supports a multitude of vendors and allows users to scan and capture data directly without connecting to a computer.
One-click scanning checks several points for potential weaknesses using up to 16 channels on multi-functional products, increasing testing efficiency.
Electric motor manufacturing sector benefits from EEC’s True Negative Voltage technology in insulation resistance (IR), which meets stator winding insulation standards IEEE Std. 43.
